Conical Reception Desk
Greenwich Hotel, London
|
click to enlarge
|
In conjunction with the London 2012 Olympics
The Greenwich Hotel, in London, underwent an extensive redevelopment.
2TA Ltd was commissioned, by the contracted joinery company, to produce
the setting out details for fixtures and fittings to the restaurant
and reception.

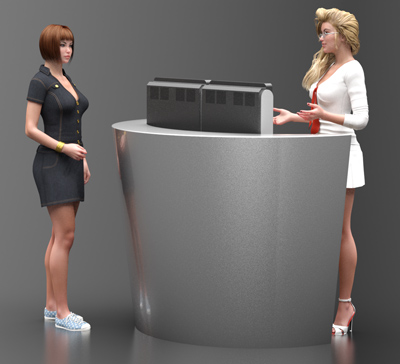

One of the items addressed as part of this package was a conical reception desk.
|
click to enlarge
|

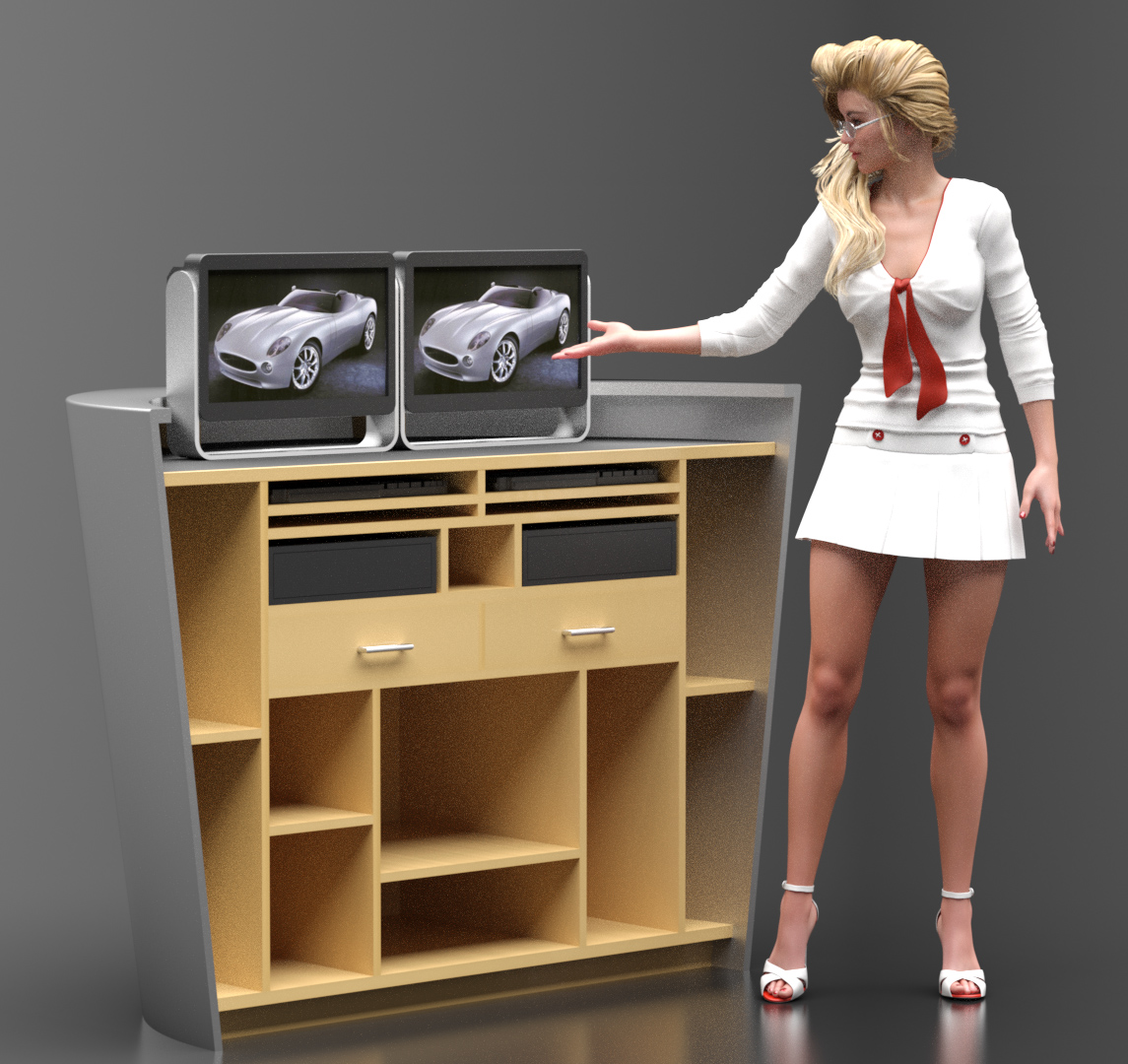

The desk included a laminated outer shell, sprayed to a solid metallic finish,
and a veneered carcase, to the rear, accommodating computers and tills.

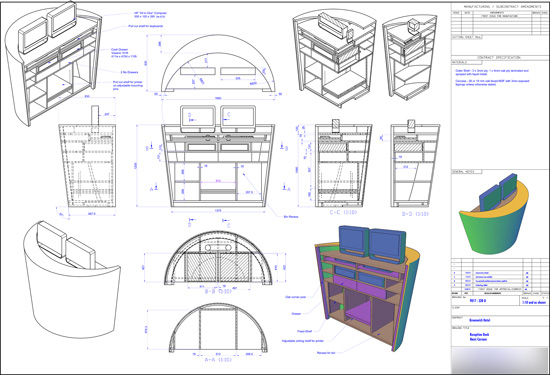

While not initially evident from the designers 2D drawings, the conical nature of the desk
dramatically reduced the available space towards the bottom of the desk.

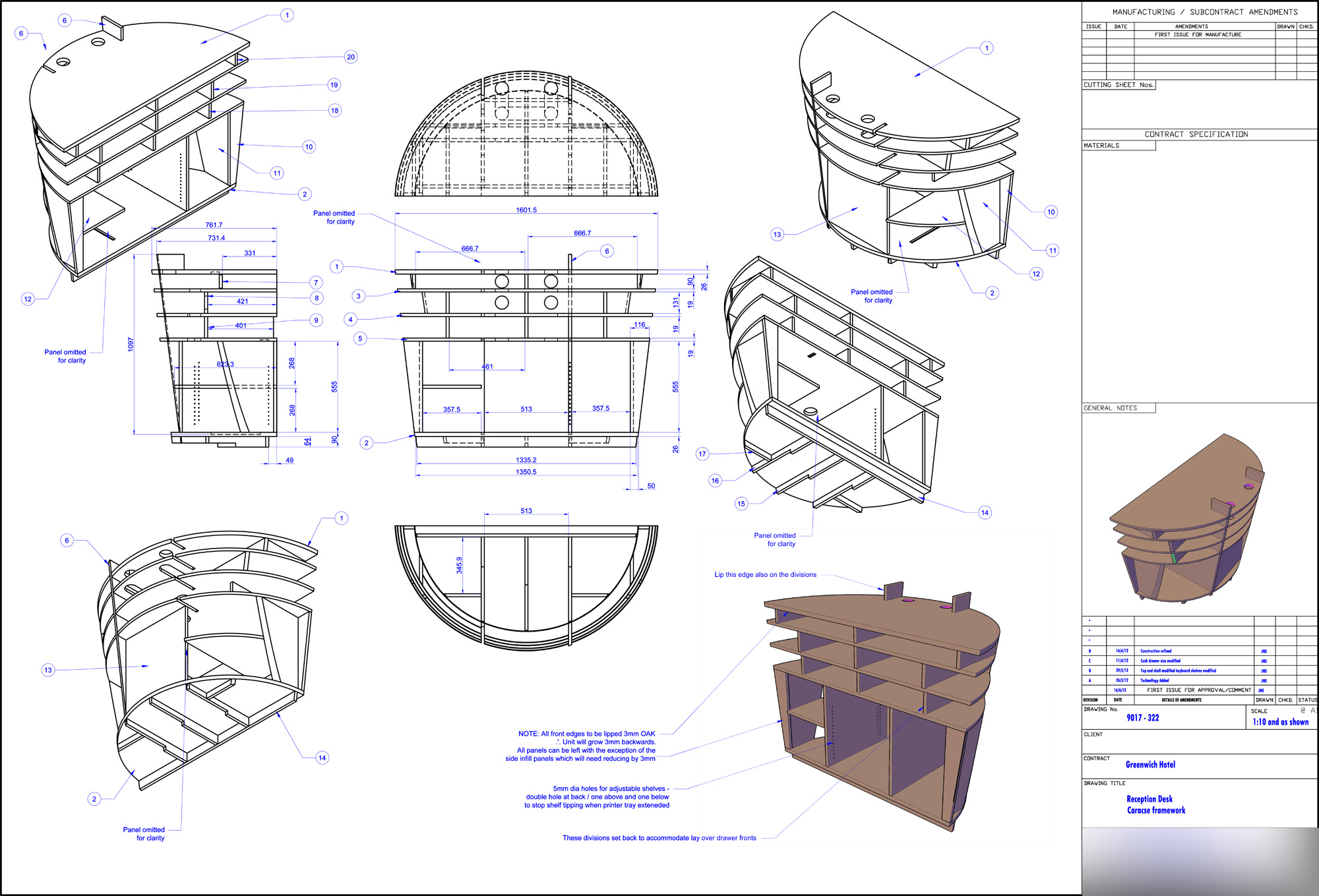

Being able to employ full 3D modeling greatly assisted the detailing of this
item, highlighting issues which would not have otherwise become apparent without
extensive projected sections.
|
click to enlarge
|
CNC router paths were taken directly from the 3D model components, greatly reducing
the time between drawing approval and manufacture.
|
click to enlarge
|
